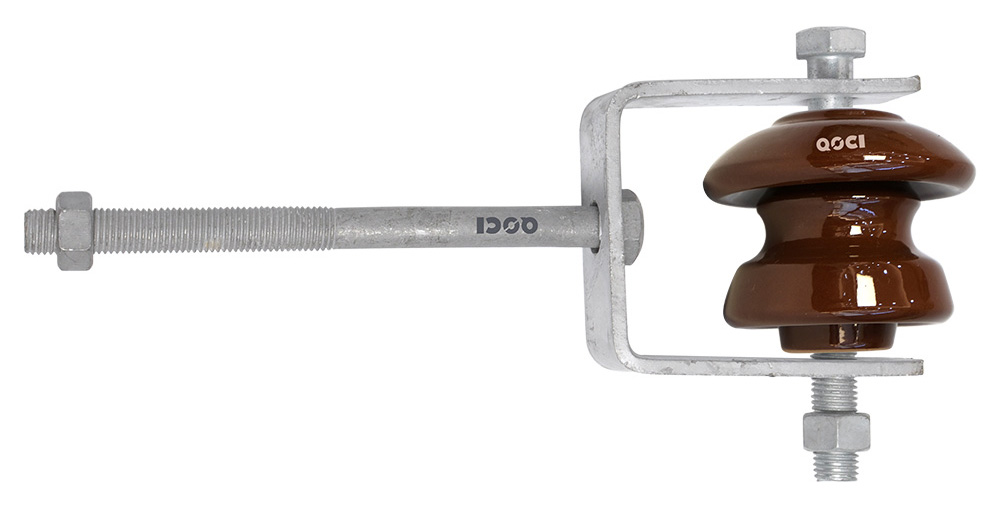

ANSI Standard Shackle Insulator ED-2b with D Iron for Low Voltage Lines

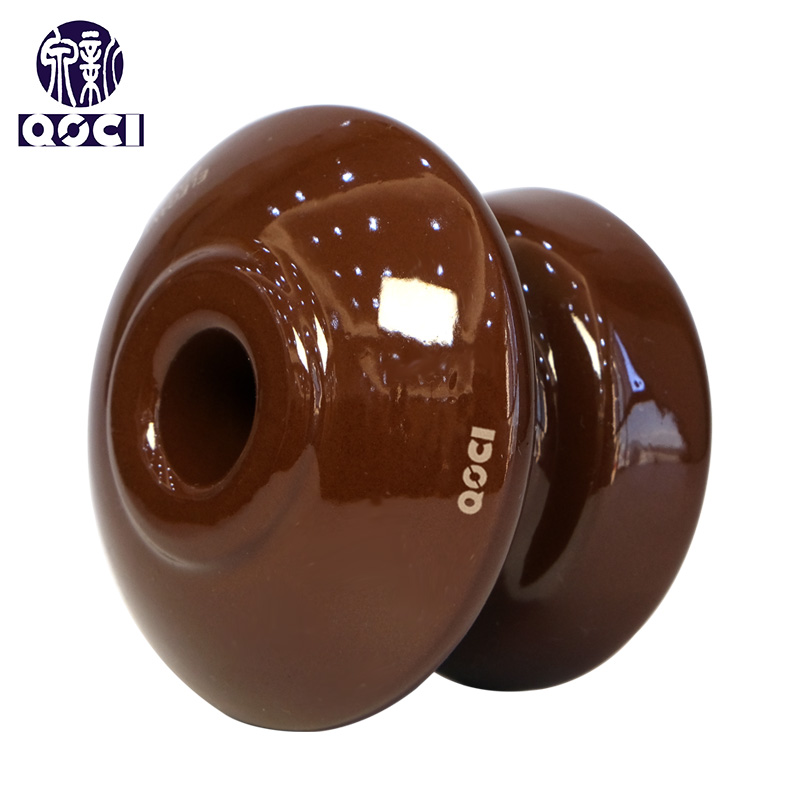

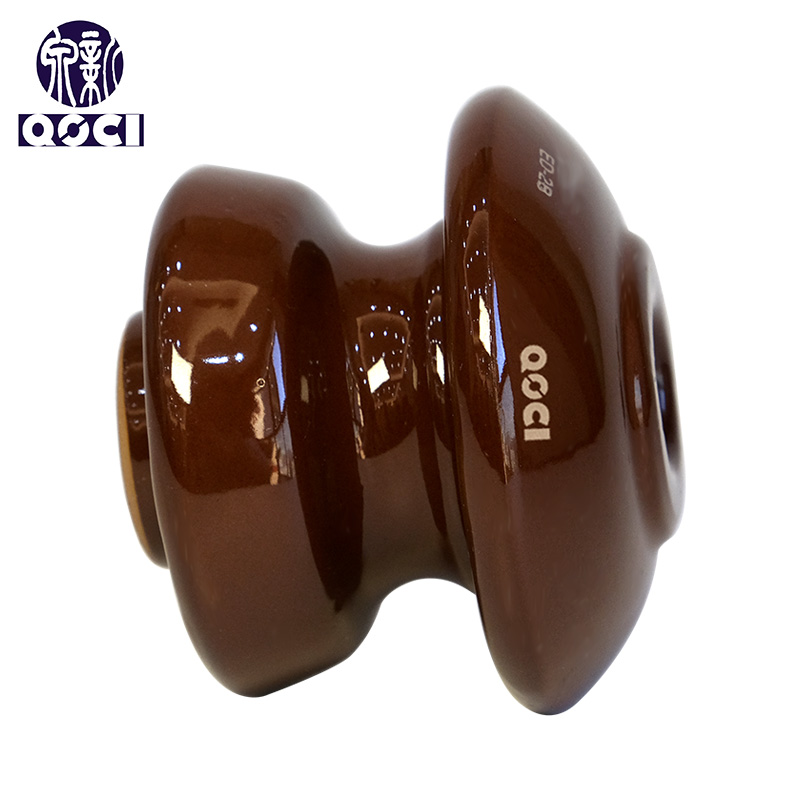

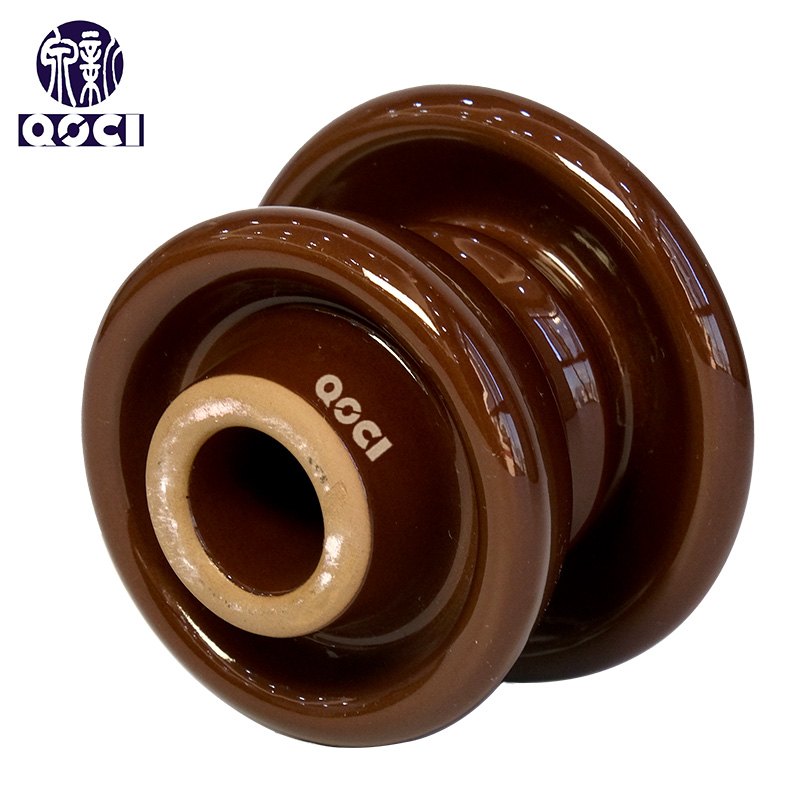

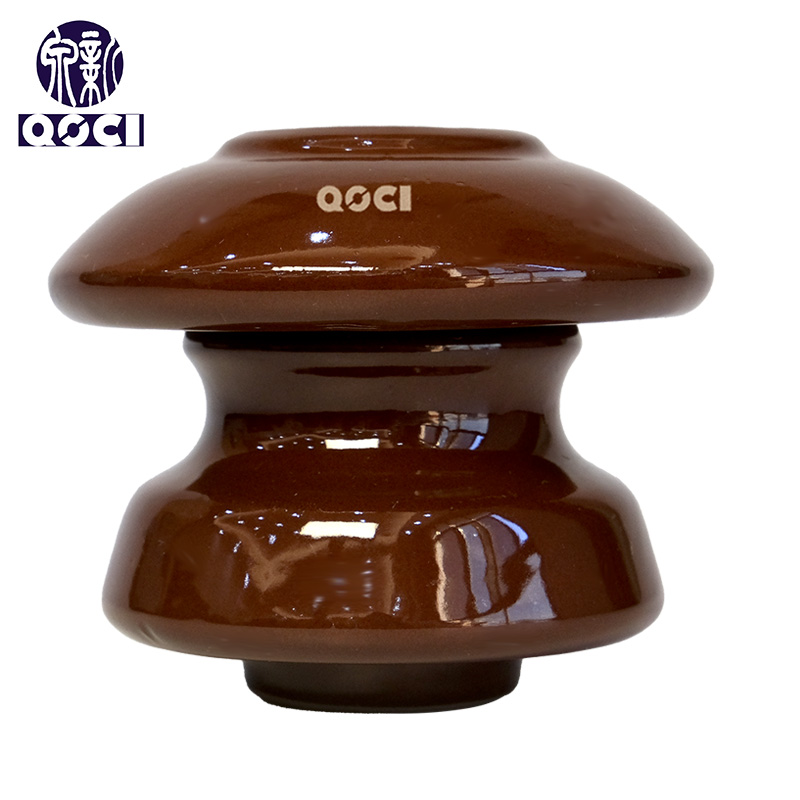

QOCI ELECTRIC-12kN ED-2b LV Porcelain Shackle Insulator Ceramic Spool Bobbin Insulator

  • Diameter 76mm
  • Height 90/95mm
  • Leakage distance 64/66mm
  • Tensile Strength 13.5/15kN
Contact us
Product Details

Product drawing

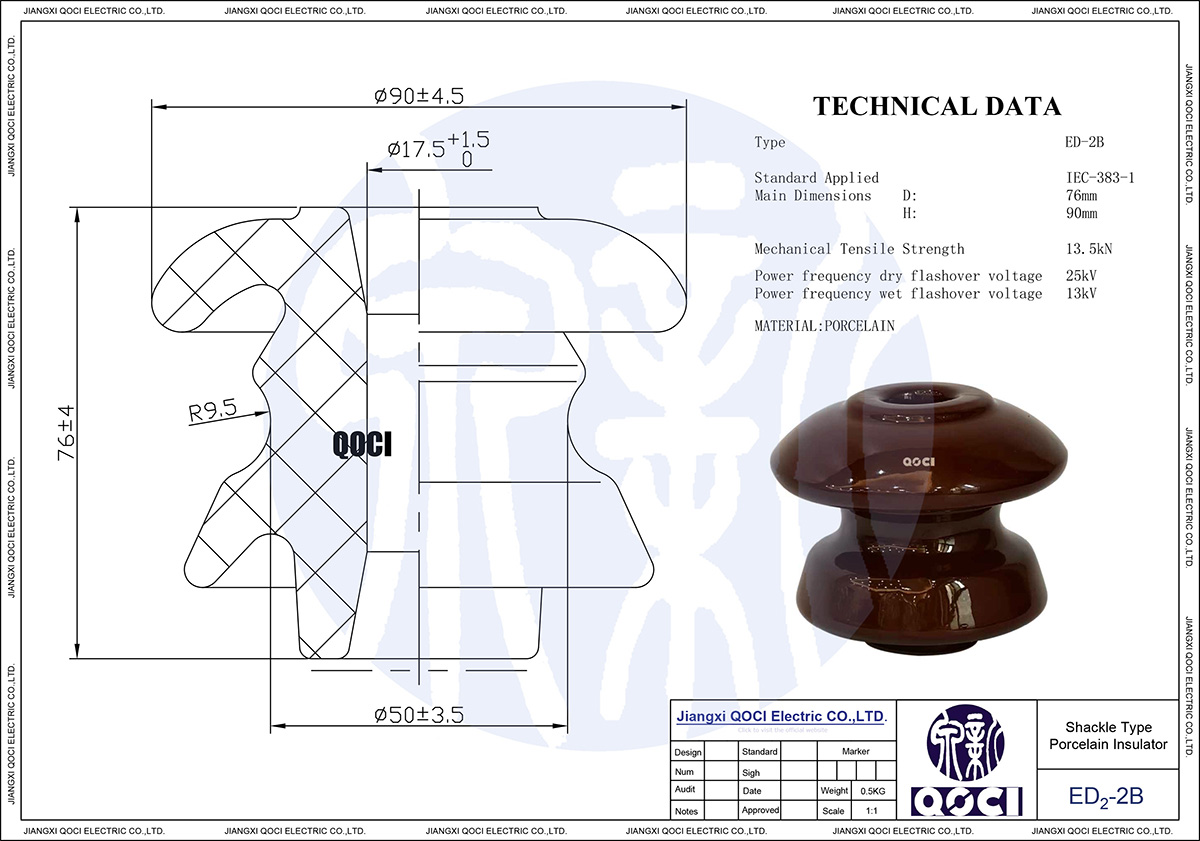

QOCI ELECTRIC ED-2B Shackle insulator Drawing.jpg

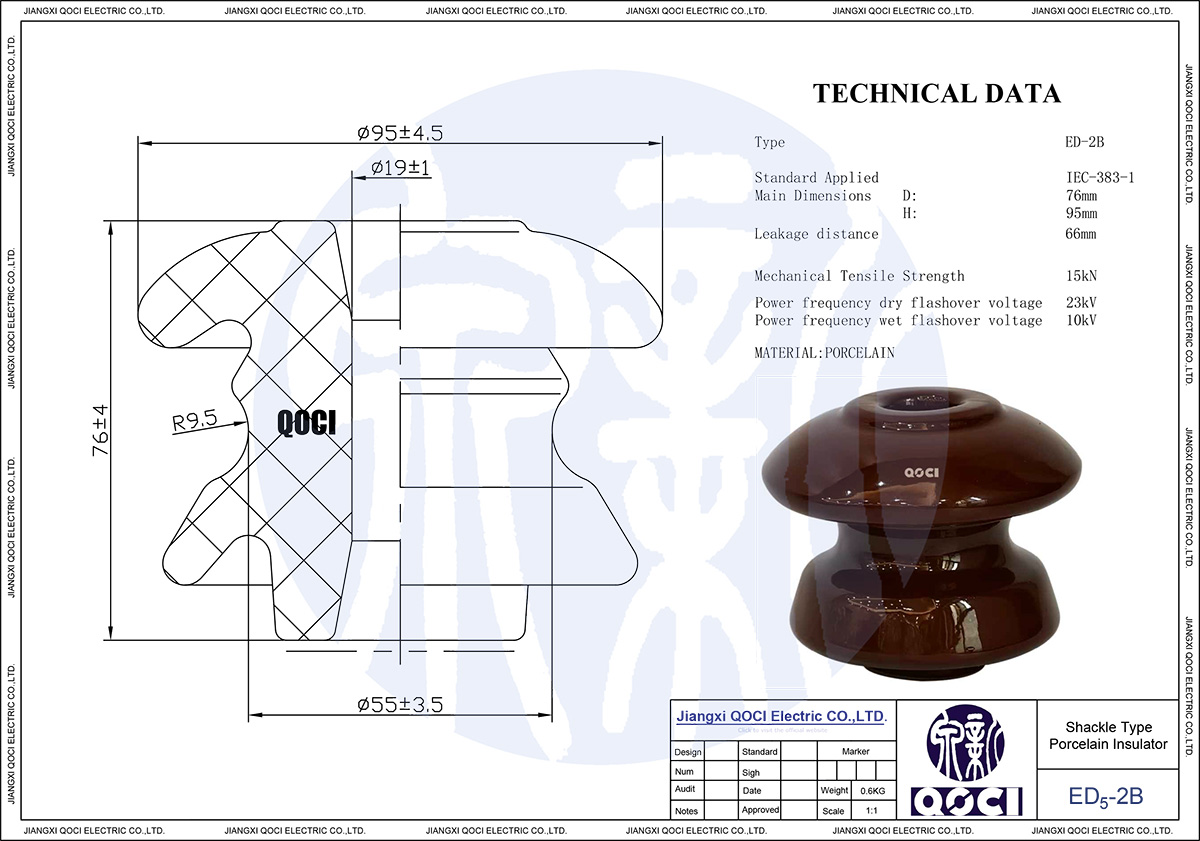

QOCI ELECTRIC ED5-2B Shackle insulator Drawing.jpg

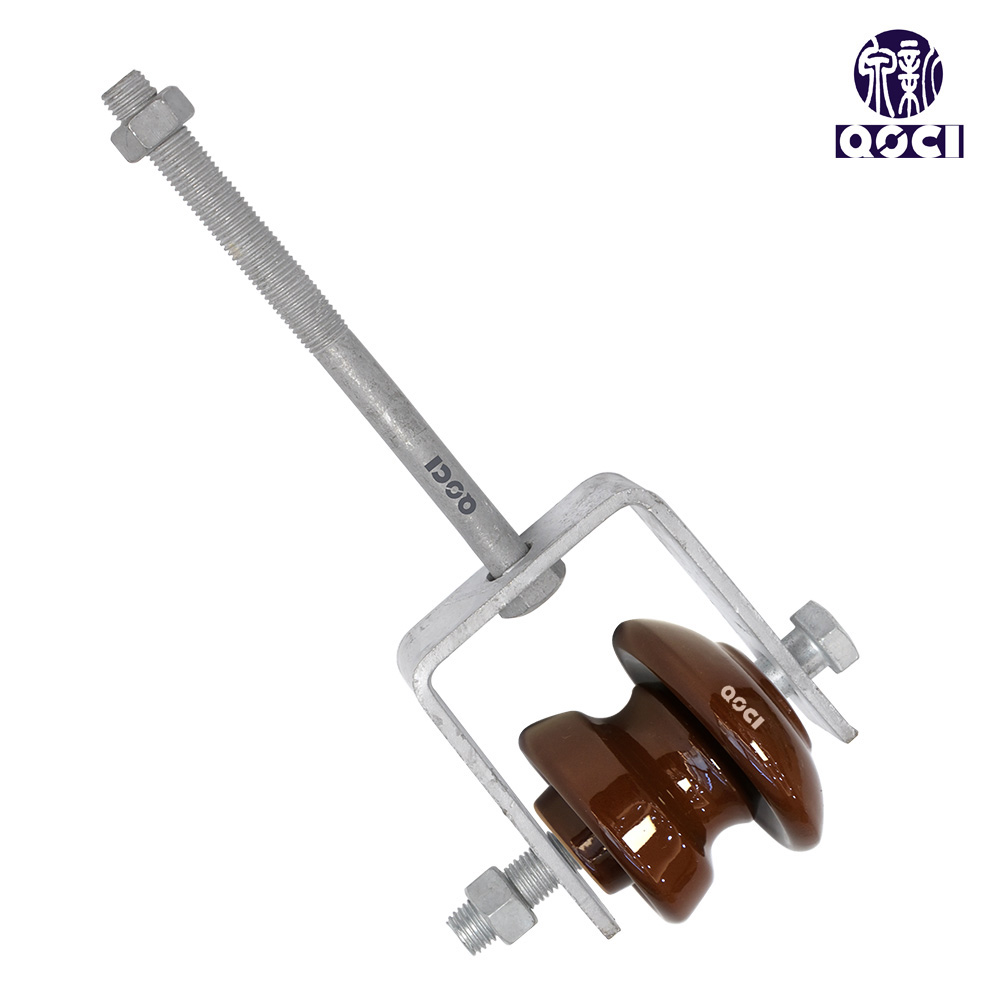

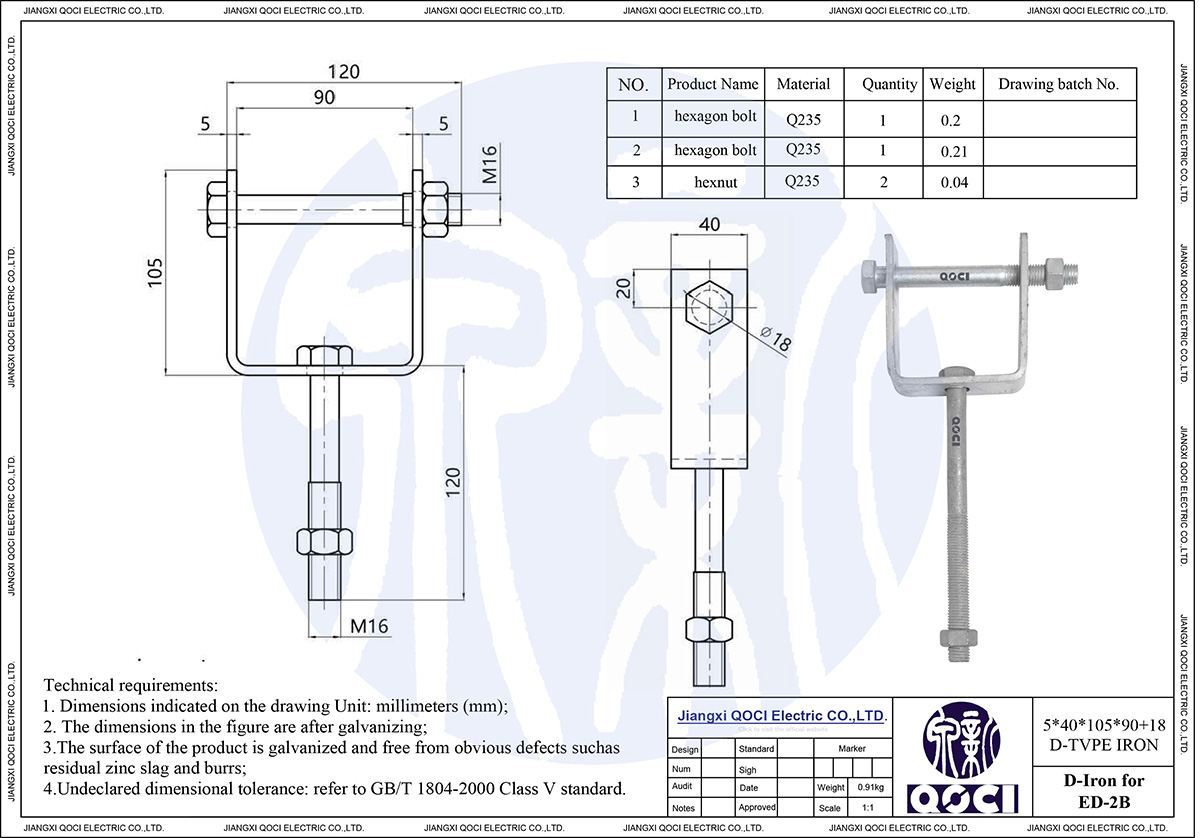

ED-2b Shackle Type Insulator with D Iron.jpg

Product parameters

Shackle insulators
Type ED2-2B ED5-2B
Dimensions
Leakage distance mm 76 76
Leakage distance mm 90 95
Leakage distance mm 64 66
Mechanical Values
Transverse Strength kn 13.5 15
Electrical Values
Low frequency dry flashover voltage kv 25 23
Low frequency wet flashover voltage kv 13 10
Packing and Shipping Data
Net weight,approximate kg 0.5 0.6
