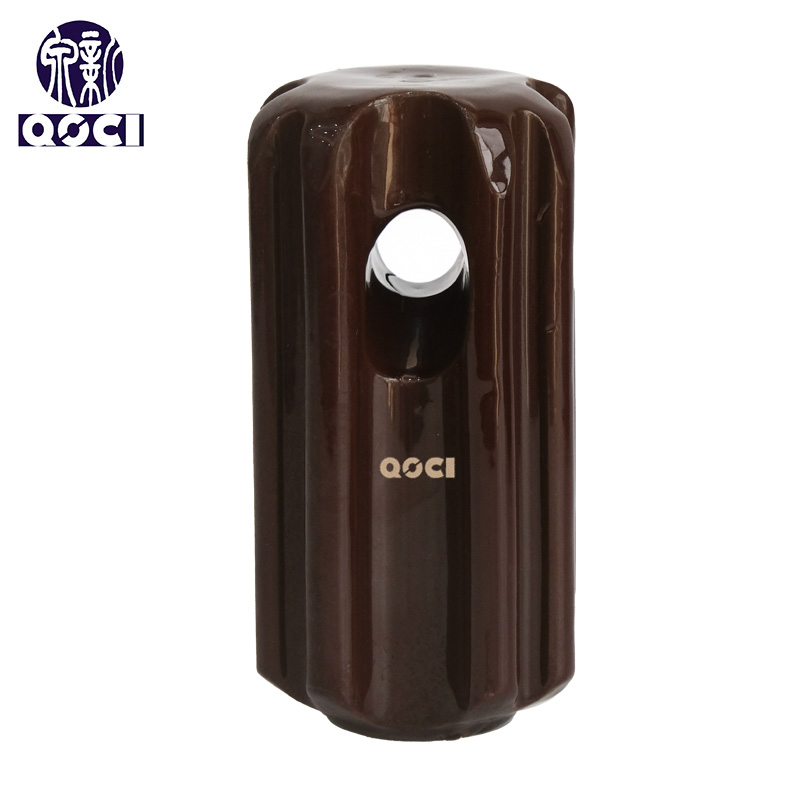

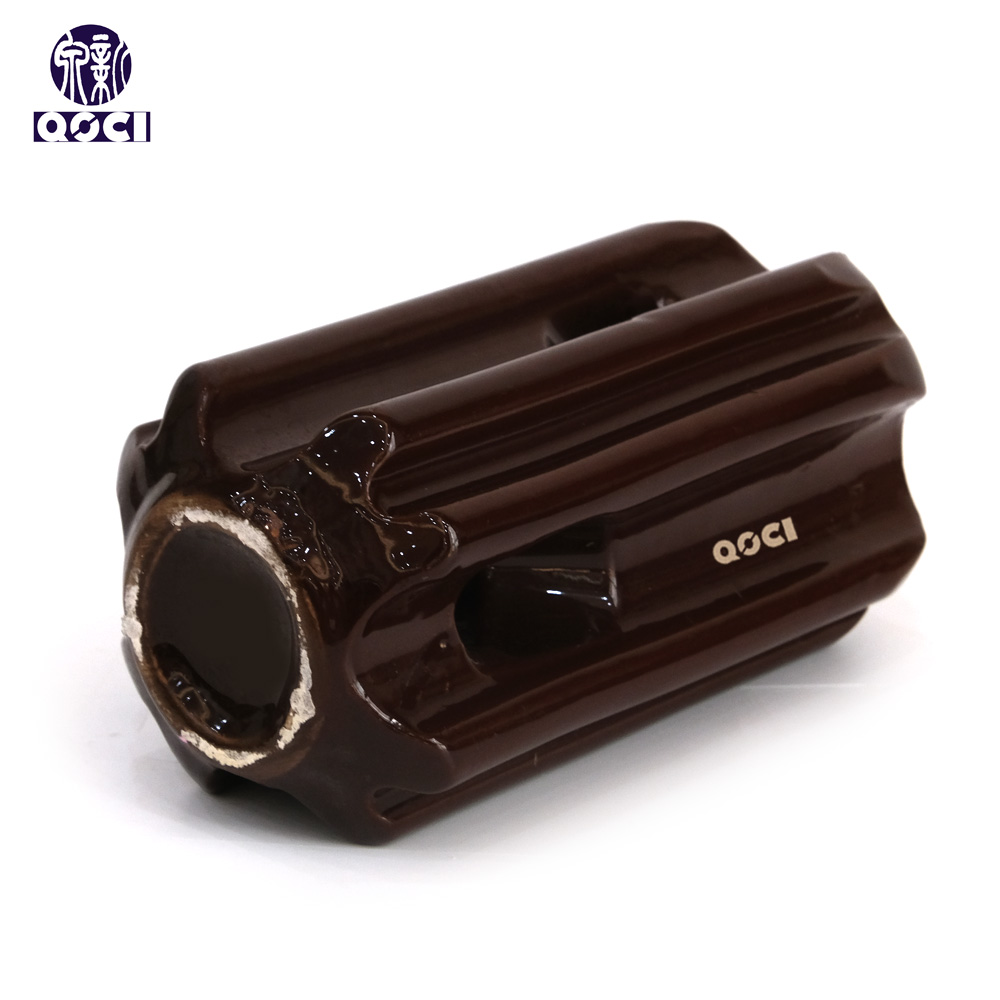

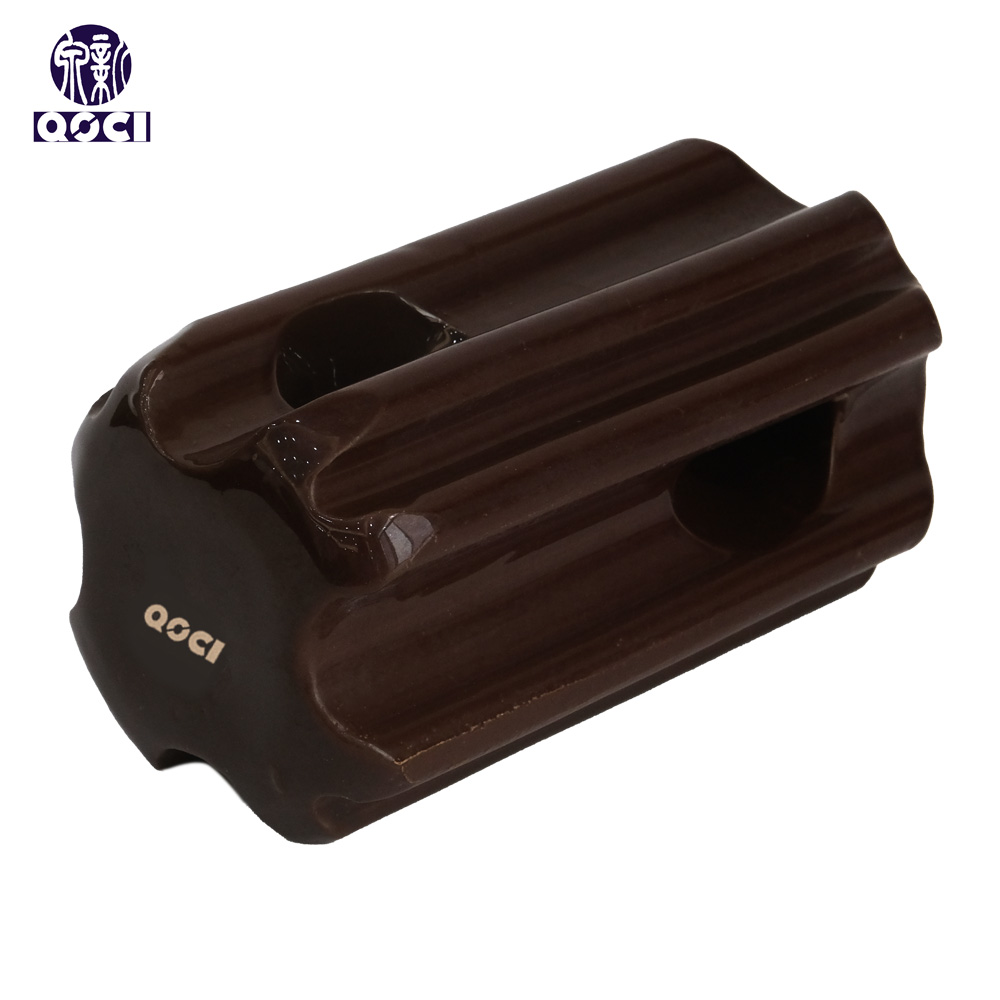

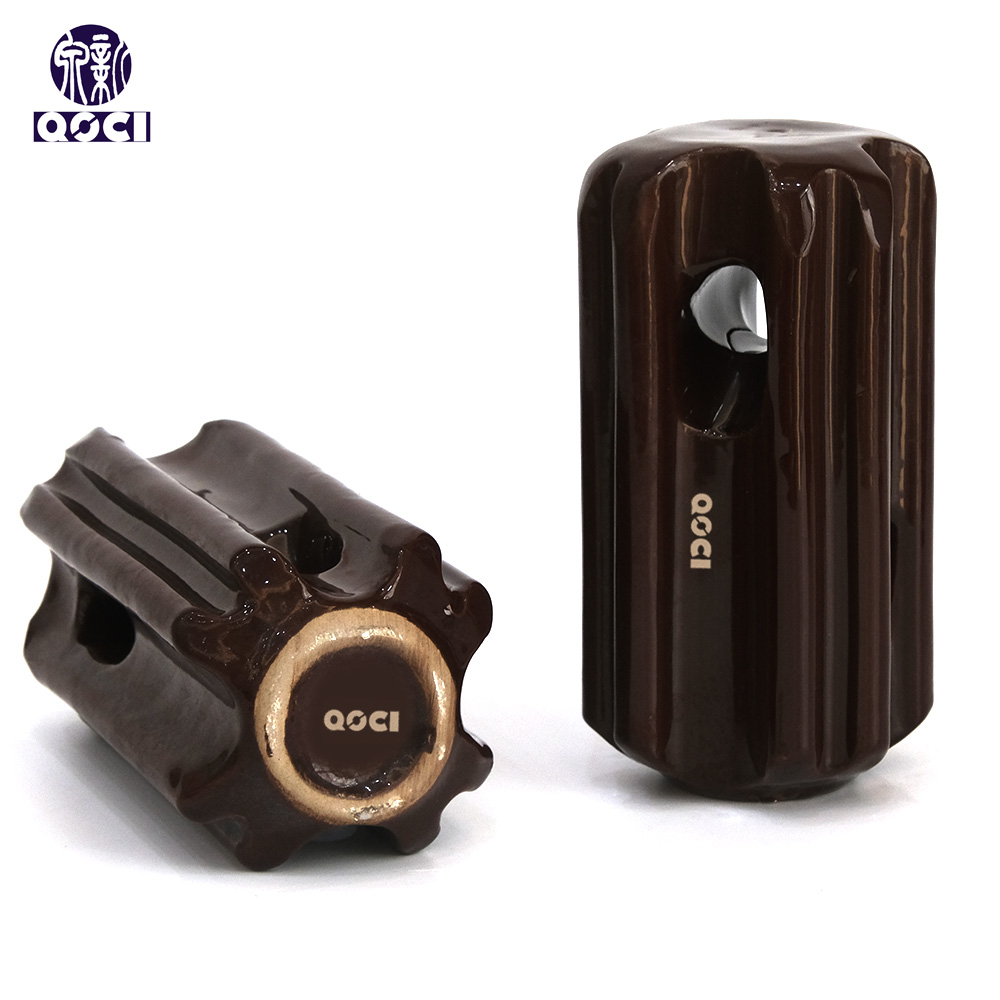

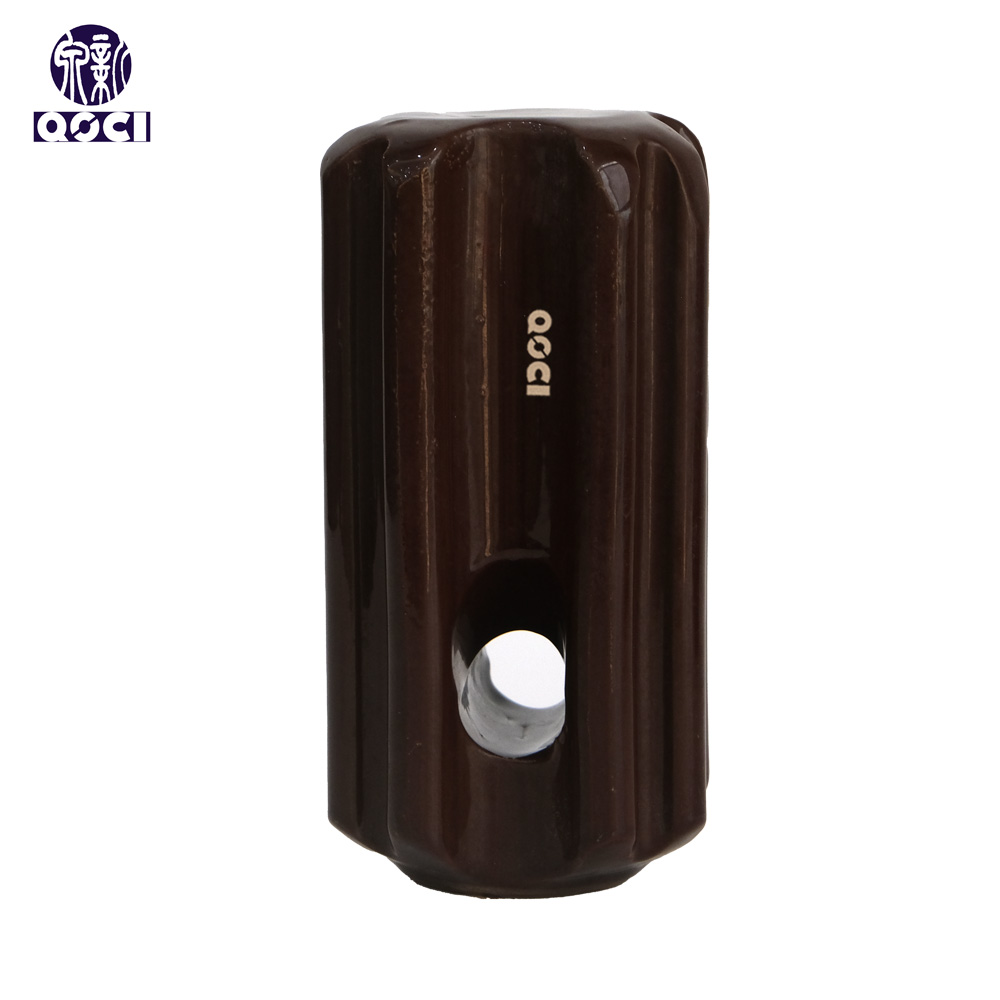

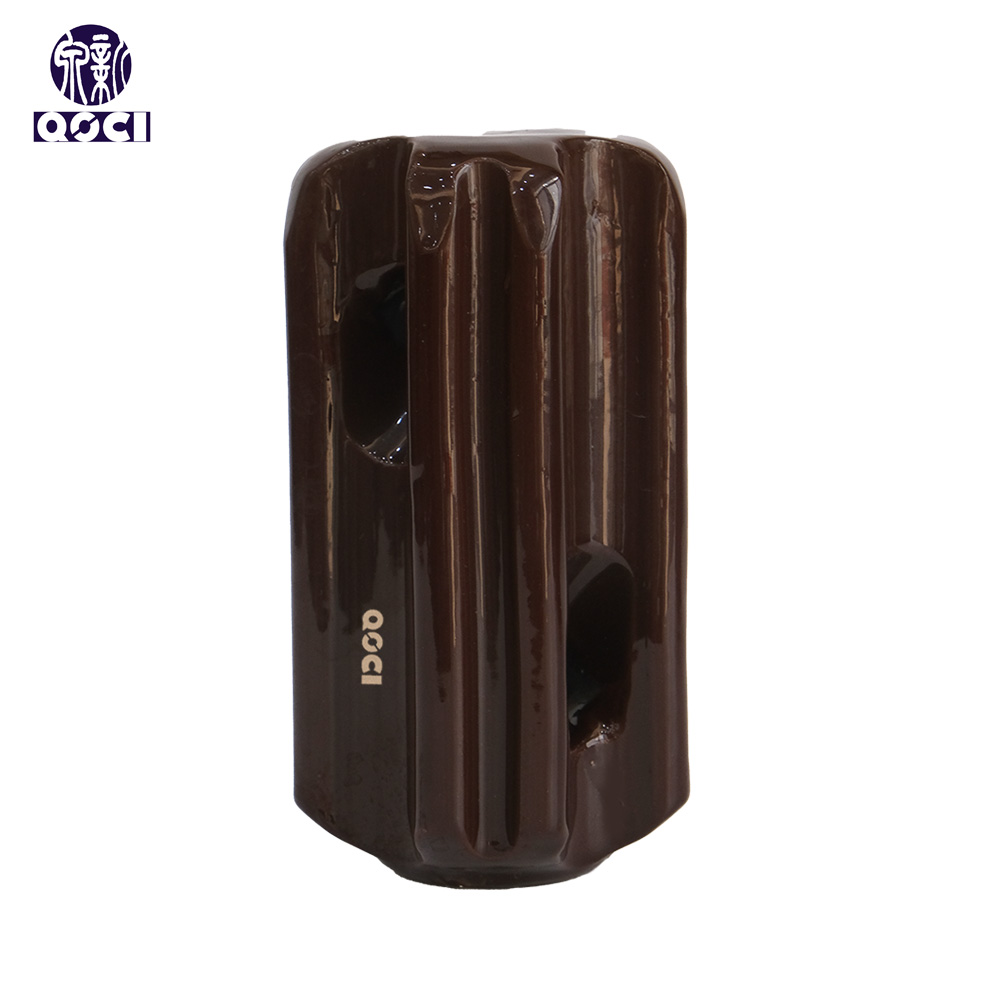

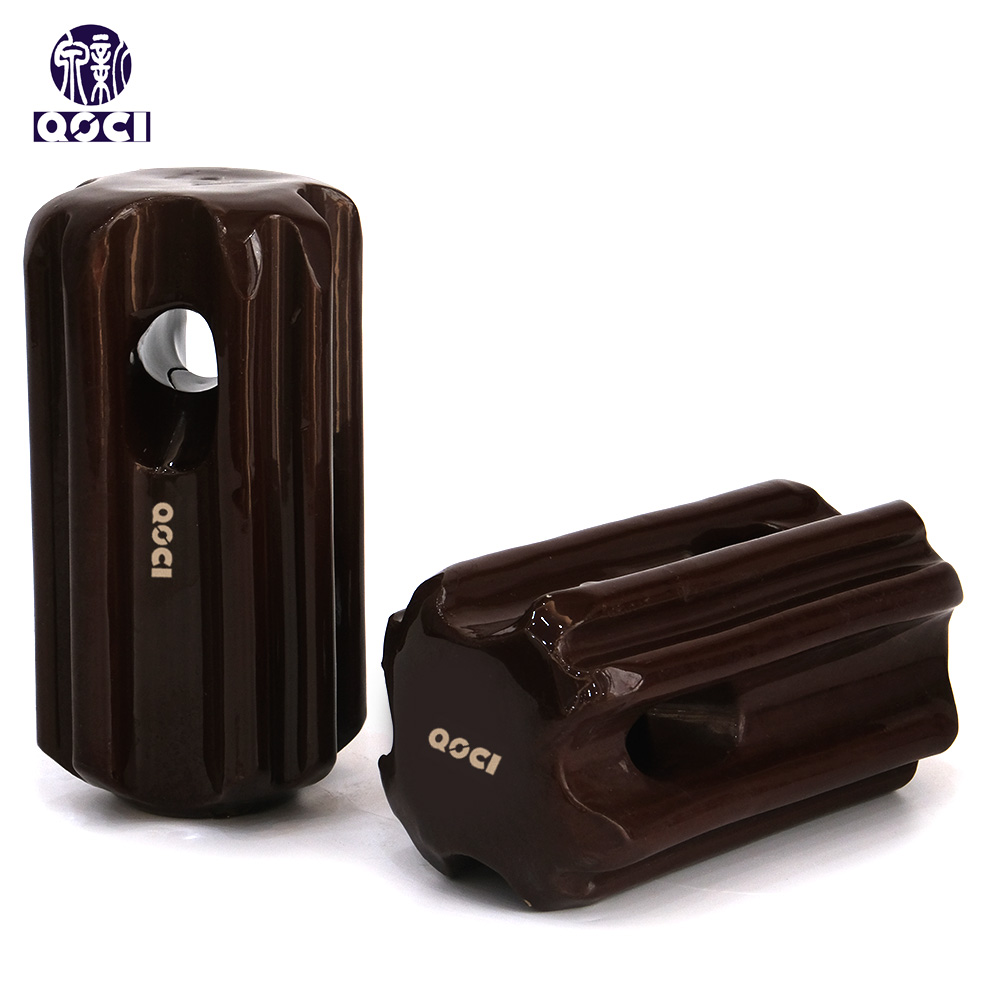

33kv ANSI 54 Series Stay Porcelain Insulators ANSI 54-4

The guy strain insulator is an insulating device installed on the stay wires of power or communication towers, designed to prevent electrification of the stay wire while bearing tension to ensure line safety and stable operation.

  • Max Diameter 97mm
  • Height 172mm
  • Creepage distance 76mm
Contact us
Product Details

Video

Product drawing

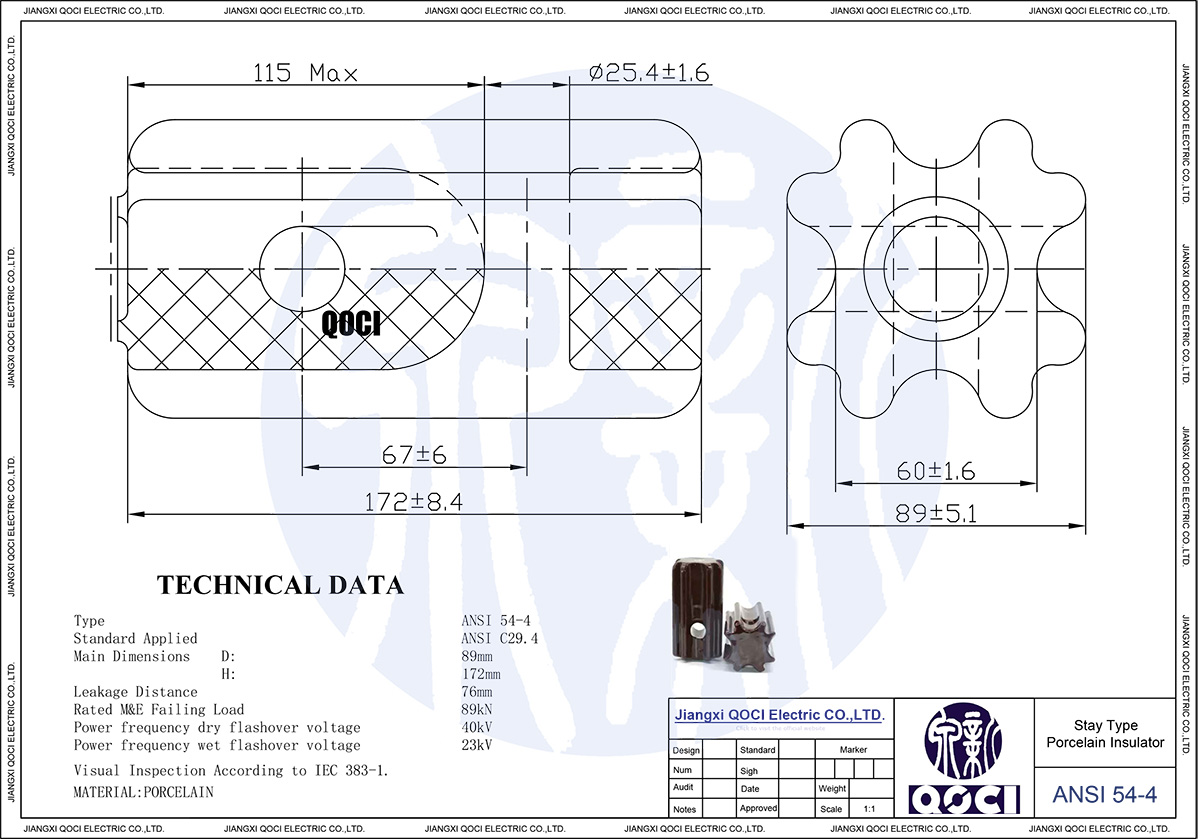

QOCI ELECTRIC ANSI 54-4 Porcelain Stay Insulator Drawing.jpg

Product parameters

Stay insulators
ANSI Class Gy3 Gy4 Gy45 Gy70 Gy90 54-1 54-2 54-3 54-4
Dimensions
Max Diameter mm 64 73 86 97
Height mm 216 280 90 146 172 89 108 140 172
Creepage distance mm 118 126 43 59 76 41 48 57 76
Mechanical Values
Cantilever strength kn 222 222 45 70 80 45 55 91 91
Electrical Values
Low frequency dry flashover voltage kv 50 60 20 25 30 25 30 35 40
Low frequency wet flashover voltage kv 35 40 10 15 20 12 15 18 23
Packing and Shipping Data

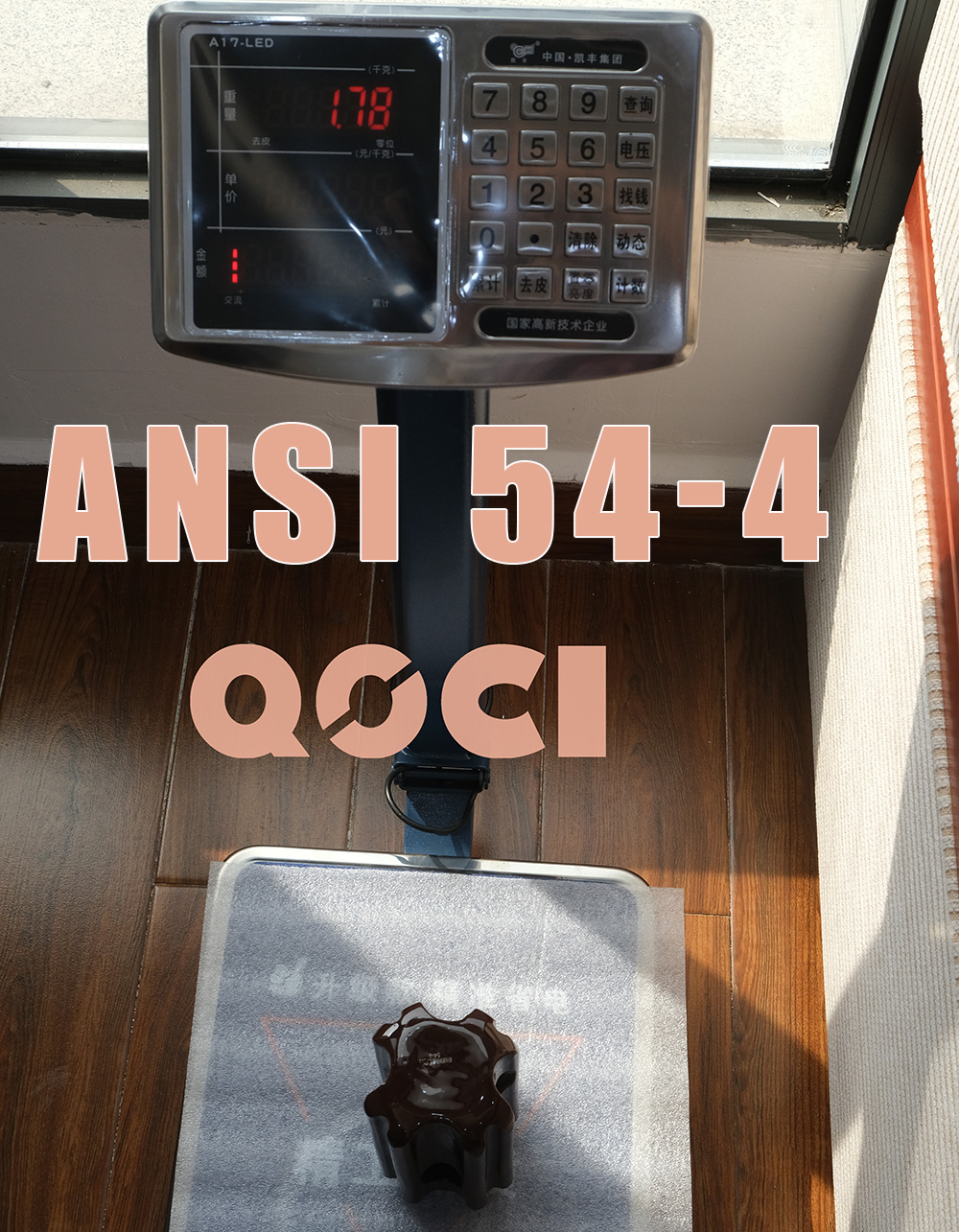

Net weight,approximate kg 4.2  5.0  0.5  1.2  1.85  0.50  0.65  1.20  1.85
