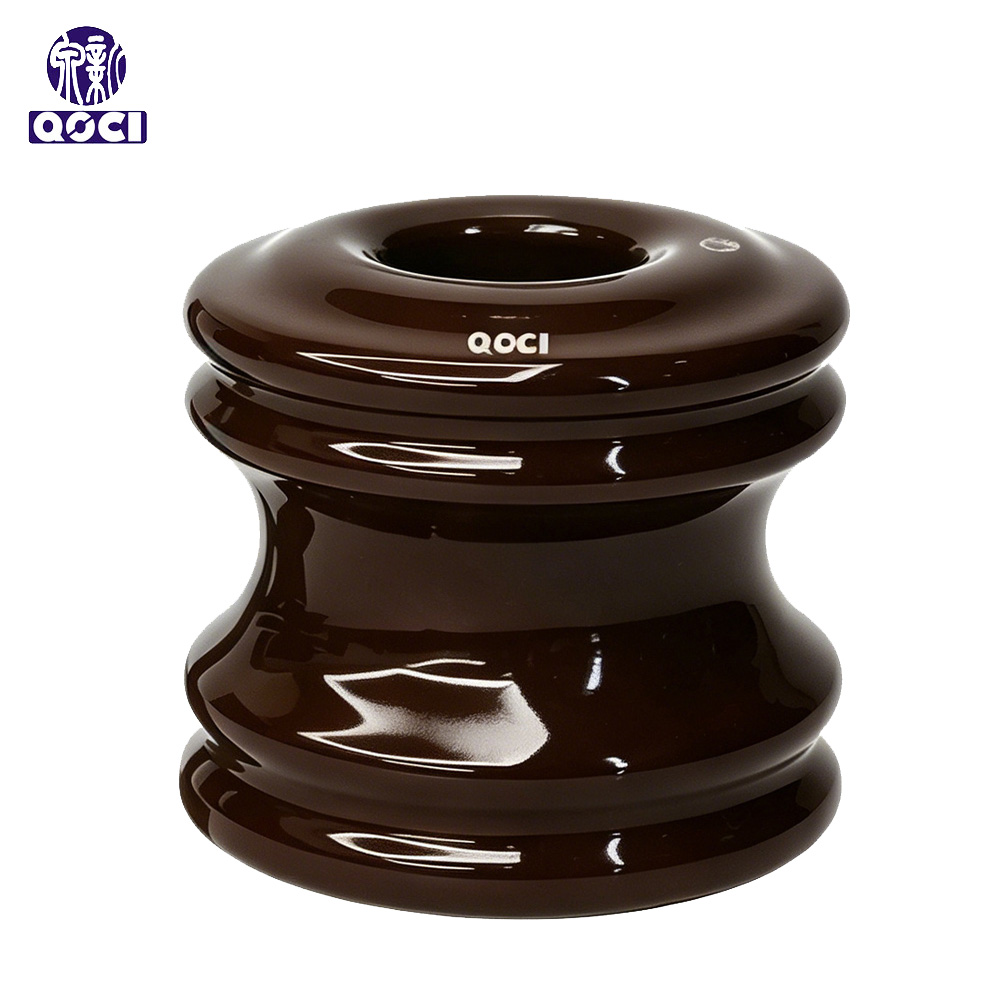

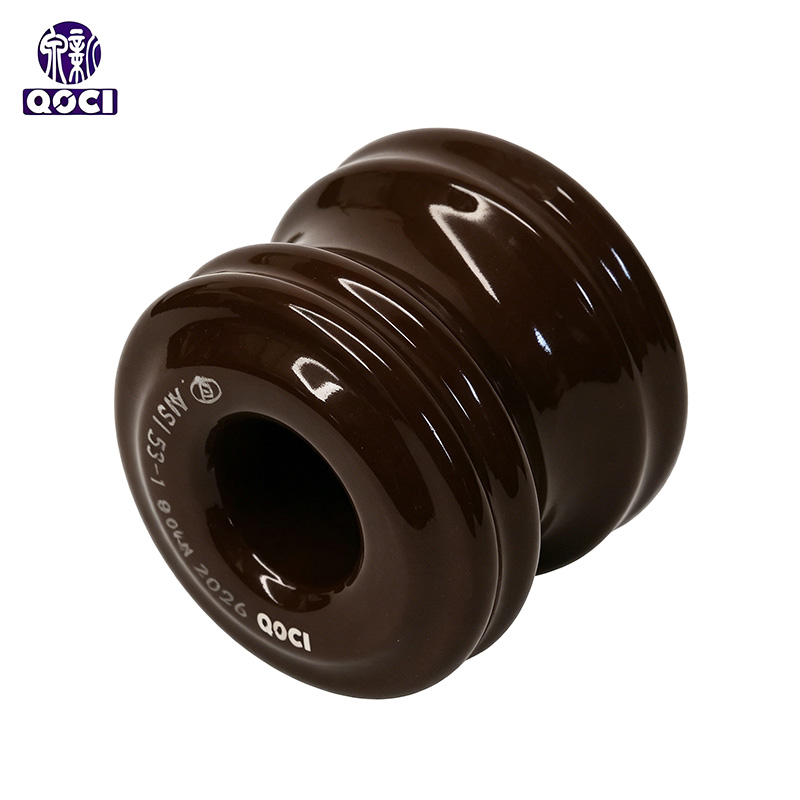

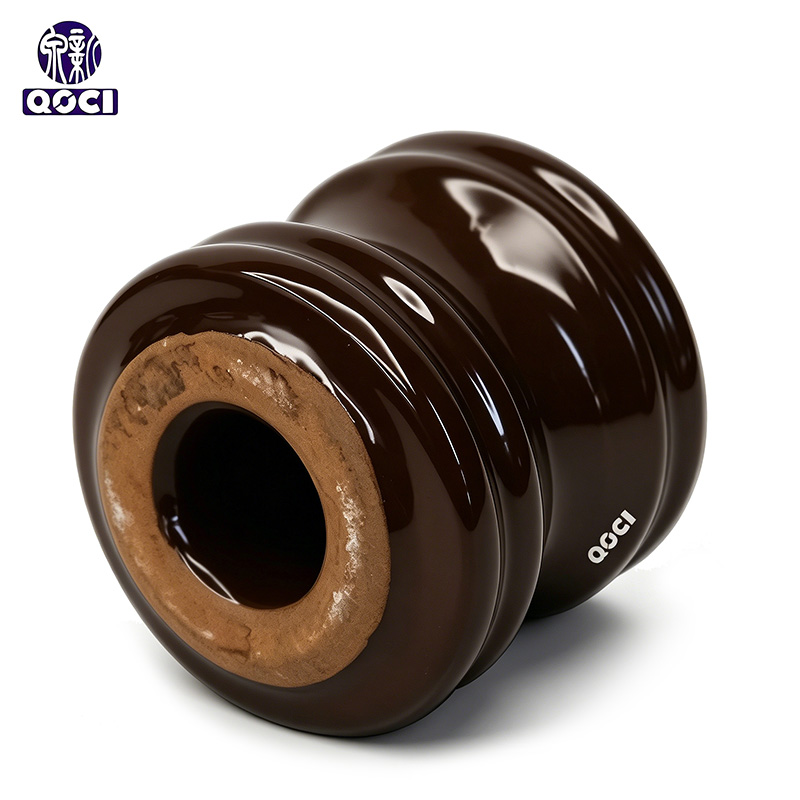

ANSI 53-1 Spool Insulator
ANSI Standards 53-1 High Quality Low Voltage Porcelain Spool Insulator
- The spool type insulator has two or more umbrella edges, with wires tied in the middle of the upper and lower umbrella edges, a central perforation, and fixed to the cross arm or clamp plate with threading nails.

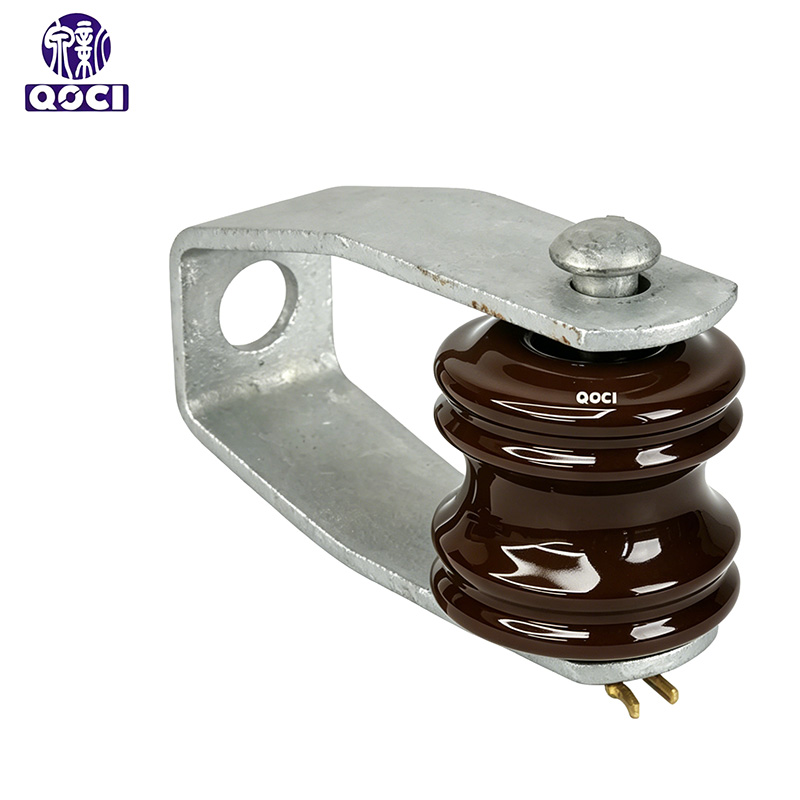

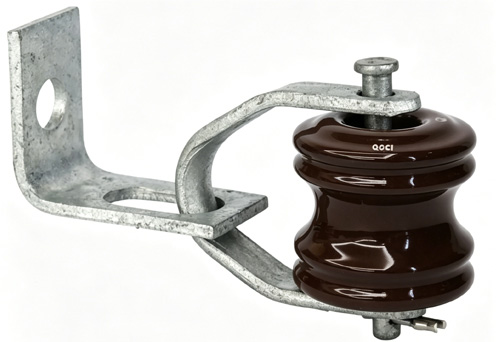

- Spool insulators are used with spool bolts (upset bolts), insulator clevises and secondary racks for neutral and secondary applications. Industry slang is pineapple.
- Brand: QOCI
- Catalog ID: ANSI 53-1
- Type: Spool Insulator
- Material: Porcelain
- Place of Origin: Jiangxi

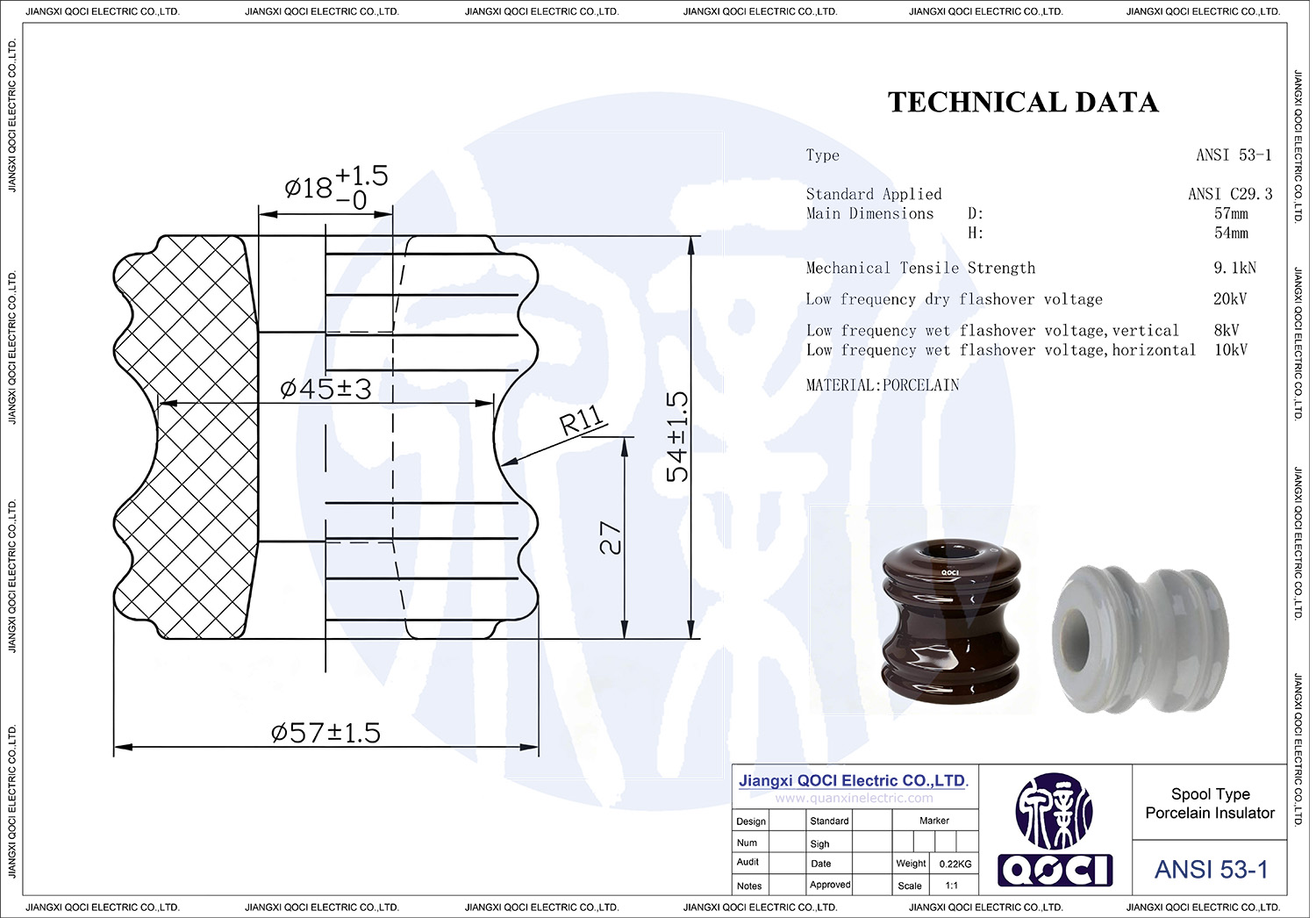

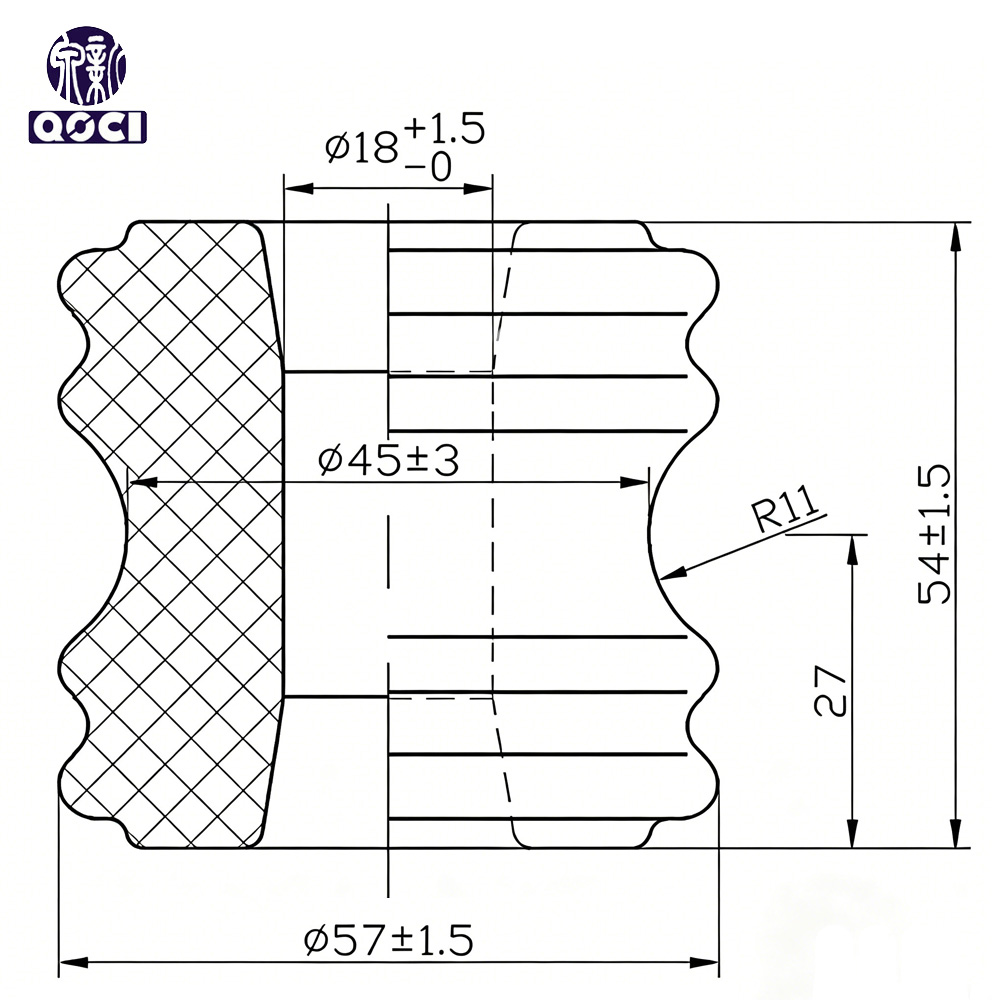

Dimensional data
|
Spacing (S) |
21/8 inch 54 mm |
|
Diameter (D) |
2 1/4 inch 57 mm |
Mechanical values
|
Combined M&E strength: |
2,000 lb 9.1 kN |
Electrical Values
|
Low-frequency dry flashover voltage: |
20 kV |
|
Low-frequency wet flashover, vertical ： |
8 kV |
|
Low-frequency wet flashover voltage, horizontal： |
10 kV |
Packing information
|
Approx. net weight per unit |
0.22 kg |
|
Carton Quantity |
90 pcs |
|
Pallet Quantity |
2160 pcs |
Industry Standard(s)
Manufactured according to ANSI C29.3
