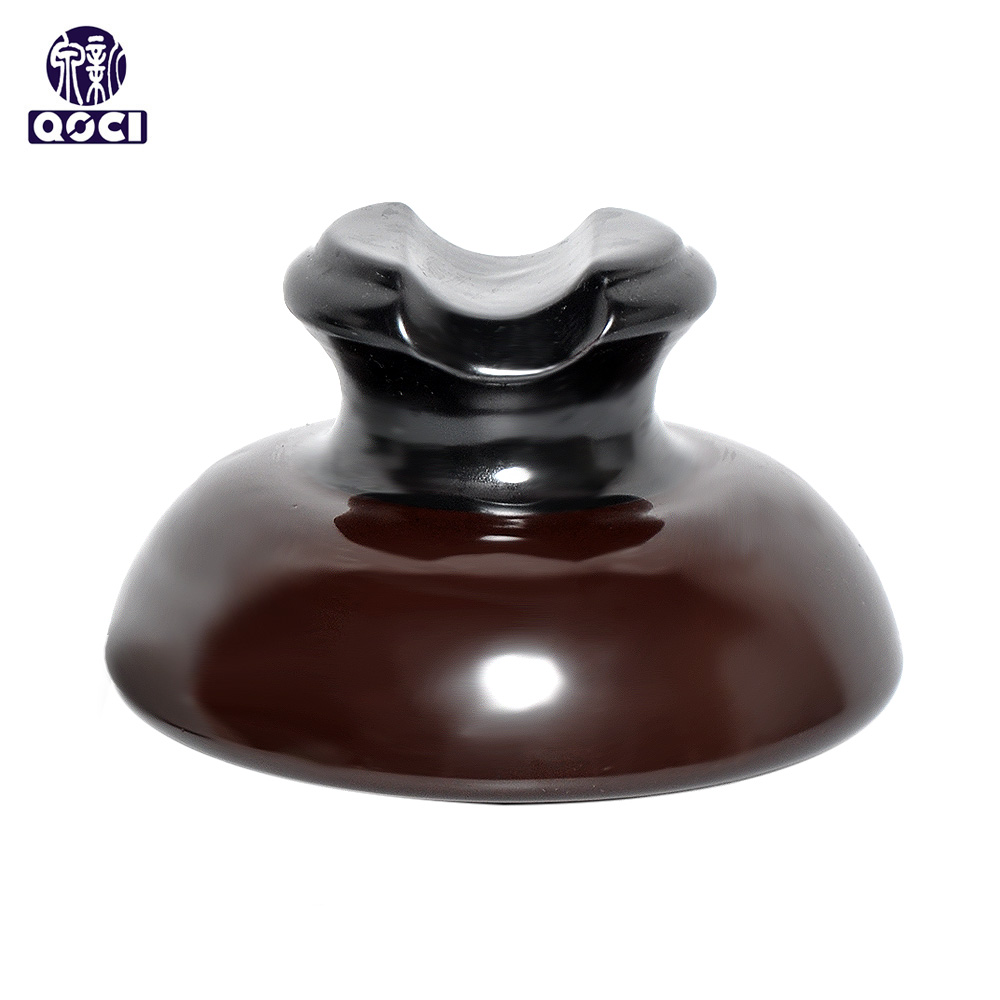

ANSI 55-5 Porcelain Pin Type Insulator

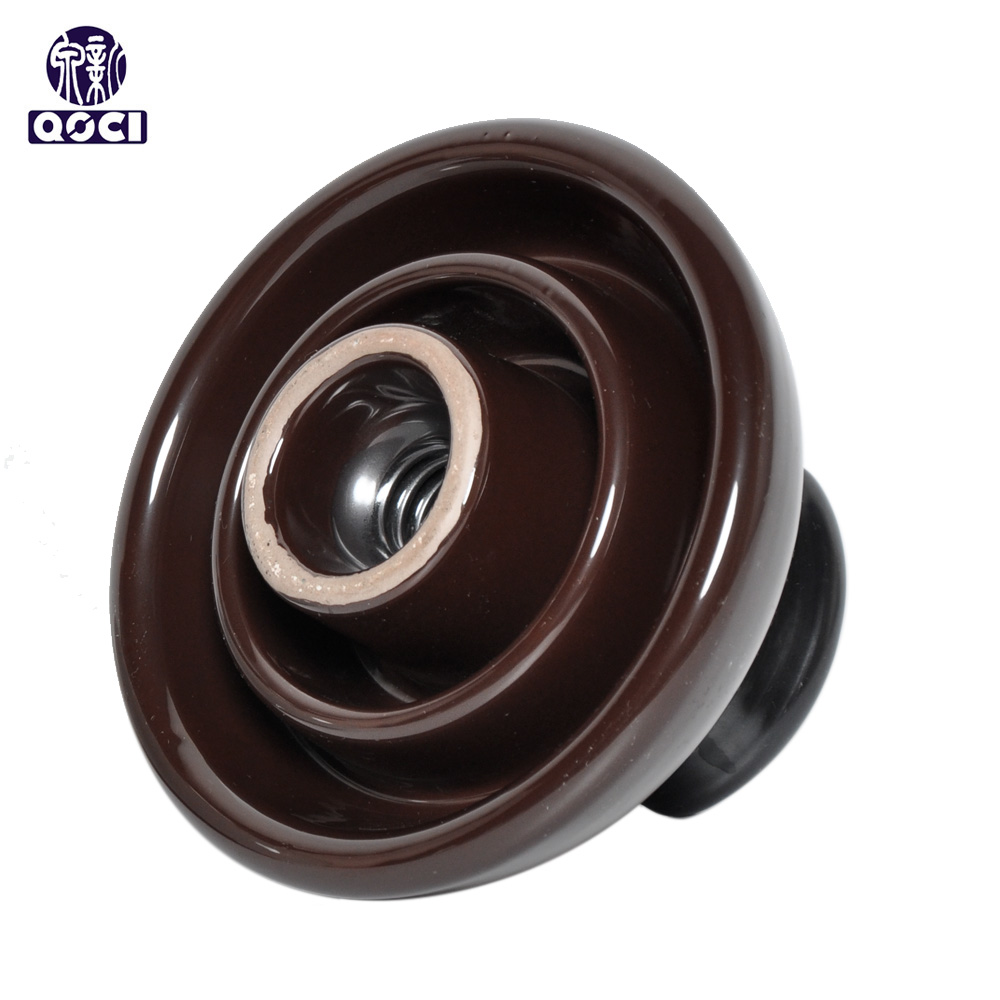

- ANSI 55-5 Pin Type Ceramic/ Porcelain Insulator with Pin Spindle
- ANSI 55-5 pin porcelain insulators are mainly used for medium voltage distribution lines.

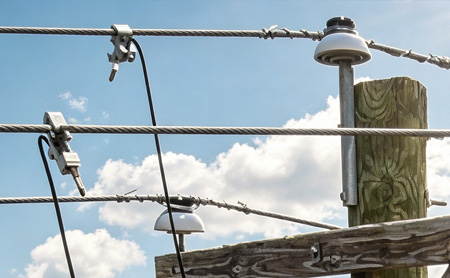

- Ceramic pin insulators are installed on the needle sockets on the cross arms of electric poles.
- The upper end of the insulator is equipped with a groove, through which the wire passes and is tied to the insulator with a wire of the same material as the wire.
- Needle insulators are suitable for transmission and distribution lines with voltages up to 33 kV. When the working voltage exceeds 33 kV, the pin type insulators become too bulky and hence uneconomical.
- Brand: QOCI
- Catalog ID: ANSI 55-5
- Type: Pin Insulator
- Material: Porcelain
- Place of Origin: Jiangxi

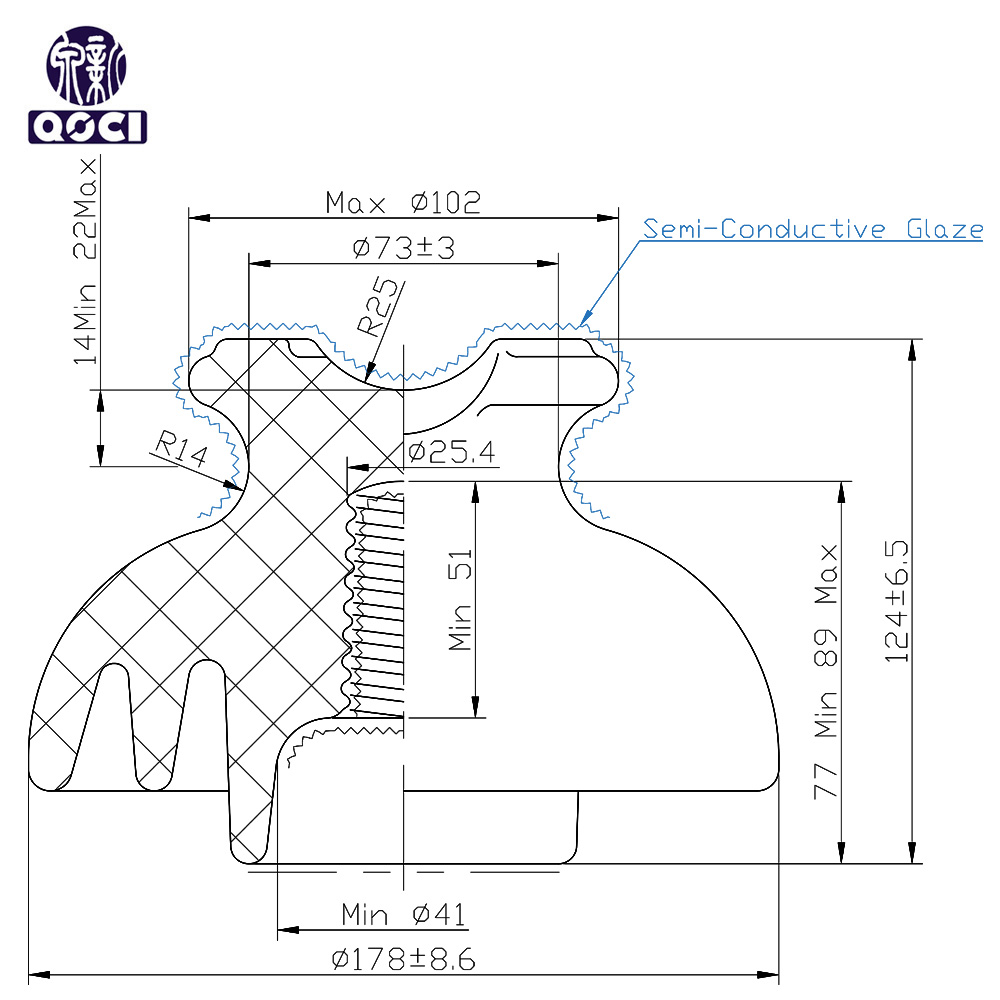

Dimensional data
|
Spacing (S) |
7 7/8 inch 124 mm |
|
Diameter (D) |
7 inch 178 mm |
|
Leakage distance (C/D) |
12 inch 305 mm |
|
Dry arcing distance： |
6 1/4 inch 159 mm |
| Minimum pin height: |
6 inch 152 mm |
Mechanical values
|
Combined M&E strength: |
3,000 lb 13.3 kN |
Electrical Values
|
Low frequency dry flashover voltage: |
80 kV |
|
Low frequency wet flashover voltage: |
45 kV |
|
Critical impulse flashover voltage, positive: |
130 kV |
|
Critical impulse flashover voltage, negative: |
150 kV |
|
Low frequency puncture voltage: |
115 kV |
|
Type application voltage: |
15 kV |
Radio-influence Voltage
|
RIV test voltage rms to ground Maximum RIV at 1000 kHz |
15 kV 100 μV |
|
Corona visual lest P/C |
18/22 KV |
Packing information
|
Approx. net weight per unit |
6.4 lb 2.9 kg |
|
Pallet Quantity |
336 |
Industry Standard(s)
Manufactured according to ANSI C29.5
