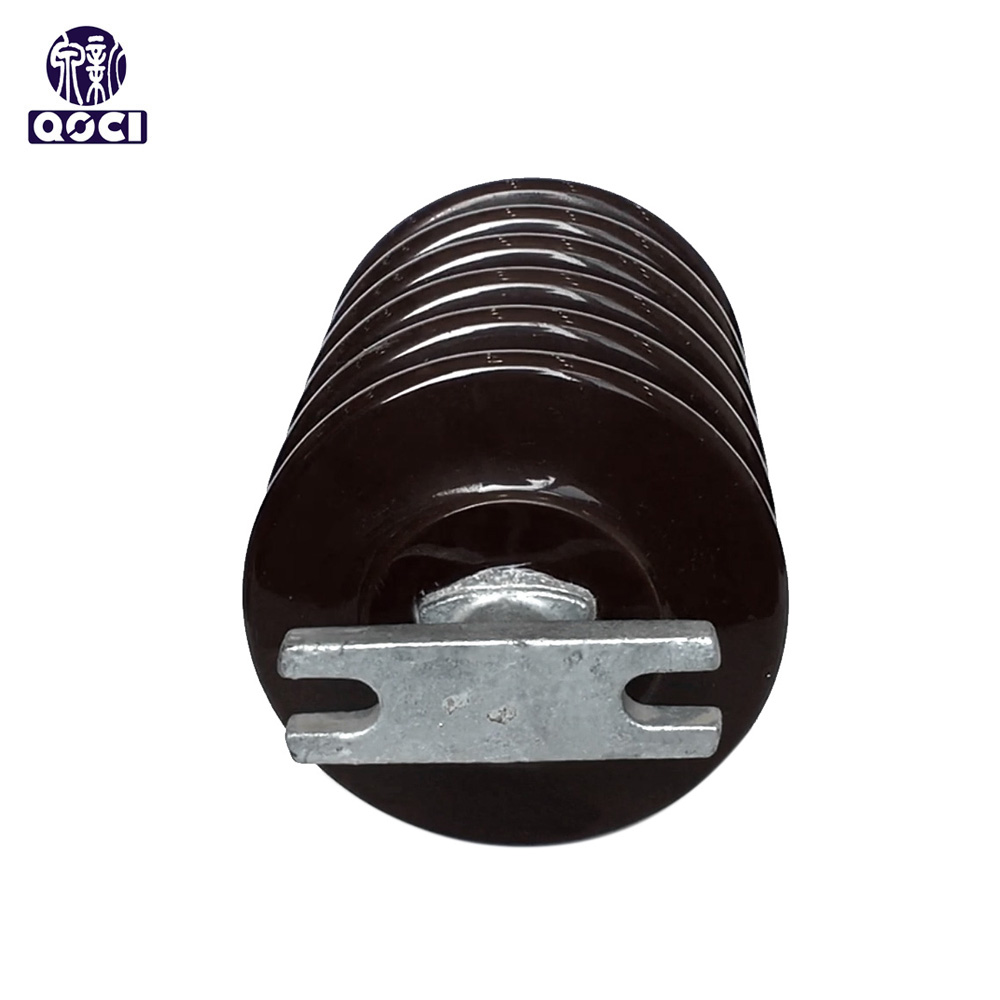

P-70 2.jpg

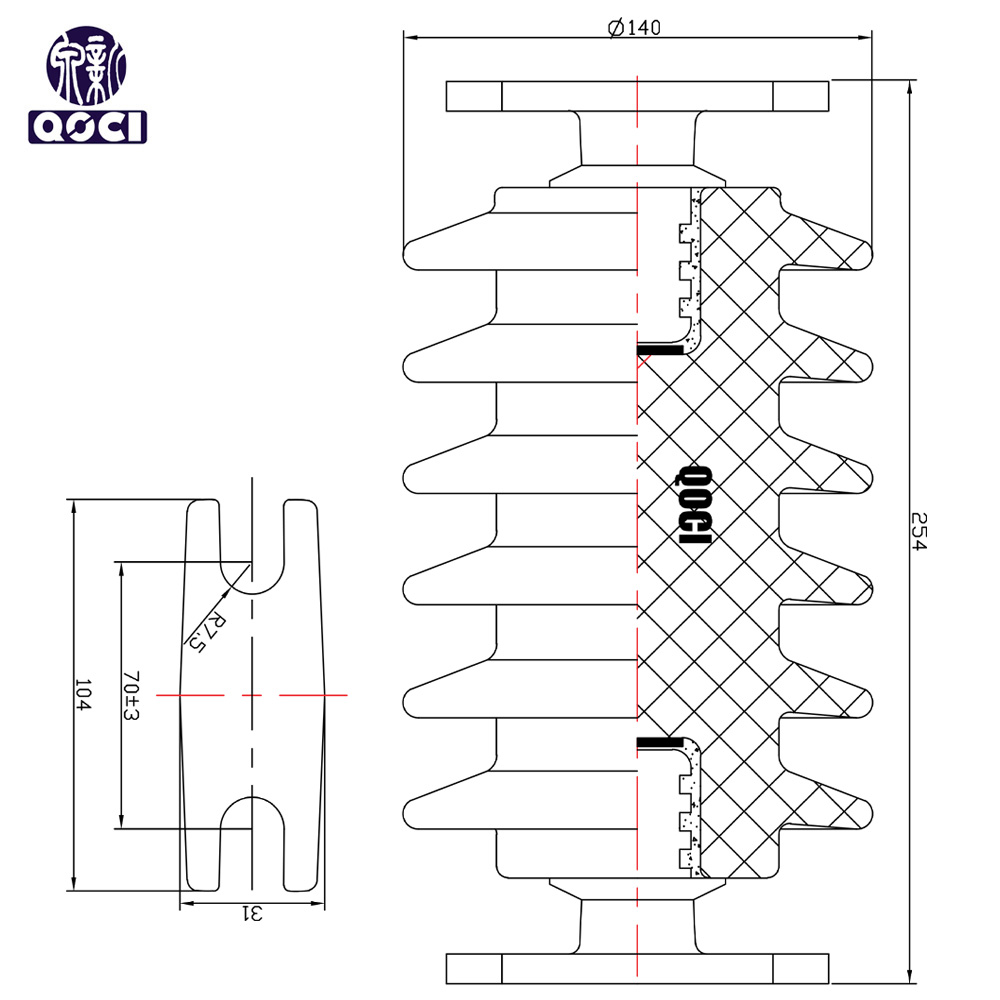

P-70 1.jpg

P-70 (6 sheds)post insulator

Outdoor Post Porcelain Insulator for Switch Gear P-70

11kv 6 Sheds Solid-Core Post Insulator P-70

Post Porcelain Insulator for Disconnect Swich P-70

  • Brand: QOCI
  • Catalog ID: P-70
  • Type: Post insulator
  • Material: Porcelain
  • Place of Origin: Jiangxi
Contact us Download
Product Details

Dimensional data

Spacing (S)

 254mm

Diameter (D)

 140mm

Creepage Distance (C/D)

 500mm

Mechanical values

Cantilever strength:

3.46kN

Electrical ratings

Low frequency wet flashover voltage:

70kV

Critical impulse flashover voltage:

140kV

Industry Standard(s)

Tests and dimensional tolerances are in accordance with IEC60168.

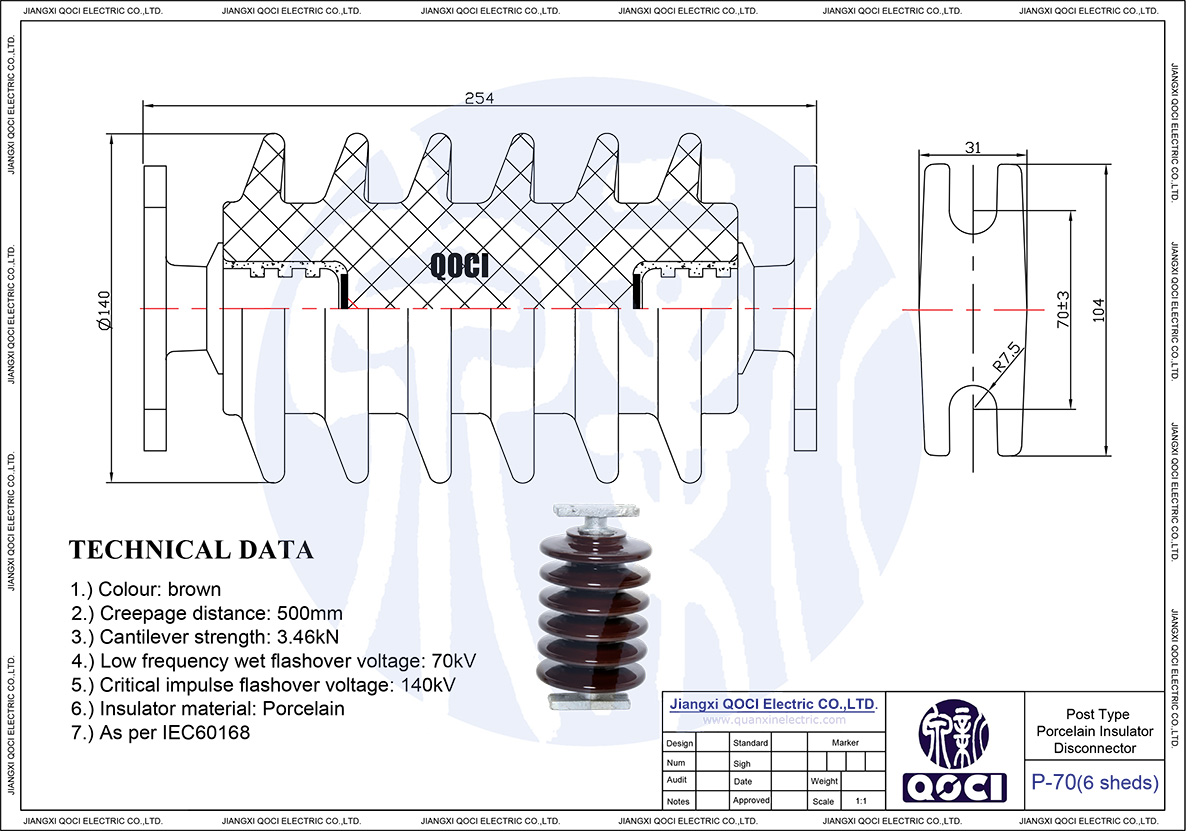

Drawing

QOCI ELECTRIC P-70 Post Porcelain Insulator for Disconnect Swich Drawing.jpg
