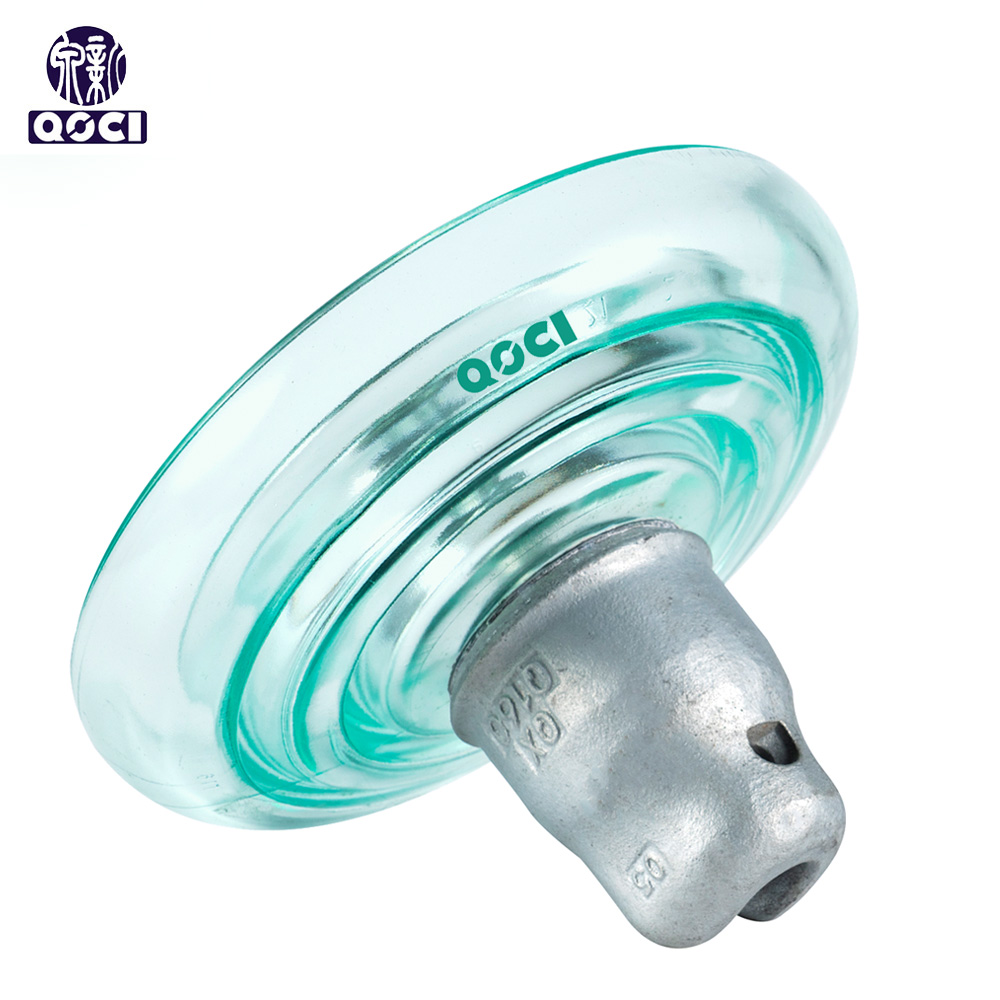

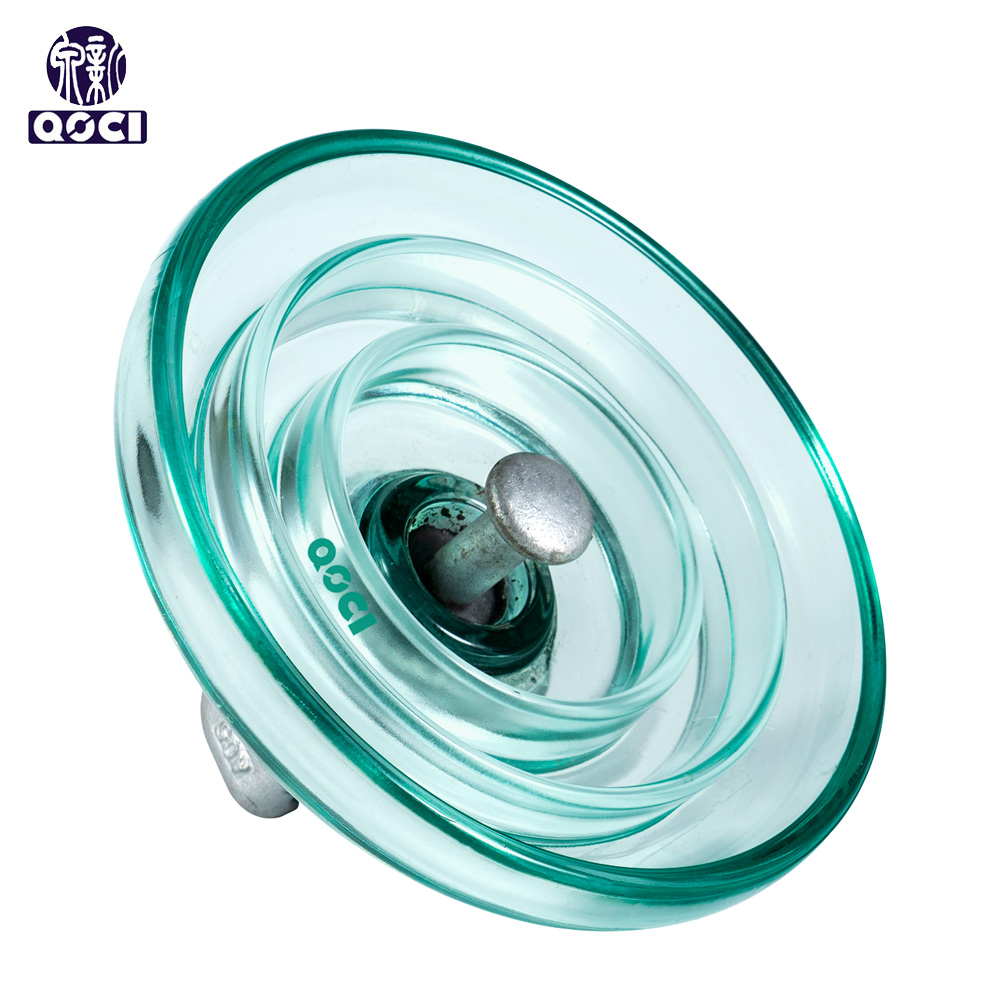

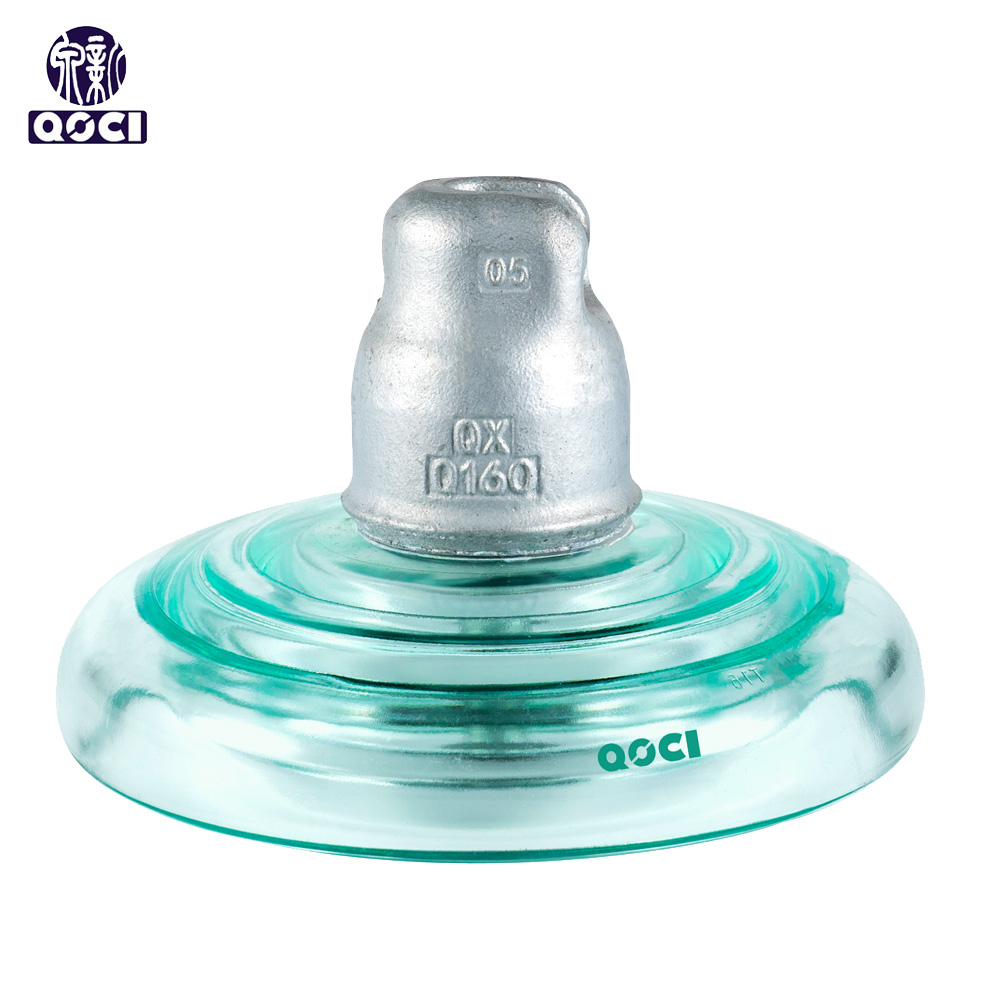

U160BS (146/280/400) Glass Insulator
U160BS is a technically mature, safe, and reliable power component that plays an important role in ensuring the safe operation of power grids.
Core Application Areas:
-

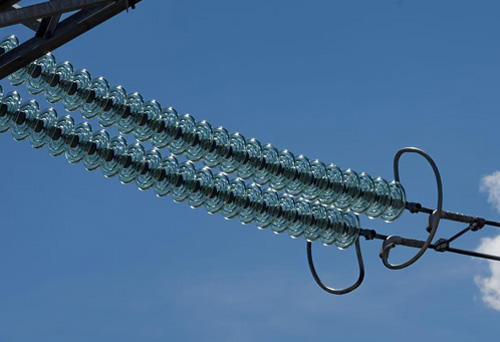

Overhead Transmission Lines: Primarily used in high-voltage and extra-high-voltage overhead lines to suspend or tension the conductors.
-
Substation Equipment: Also used within substations to provide insulation support for live equipment.
- Brand: QOCI
- Catalog ID: UG160B146/400N
- Type: Standard Type
- Material: Glass Dielectric ， Forged steel cap & pin
- Place of Origin: Jiangxi
Product Information
IEC Stand :U160BS
| U | Disc Suspension Insulator |
| 160 | Mechanical failing load of 160kN |
| B | Ball And Socket Type |
| S | Shorter steel pin ，Assembled to achieve a product structural height of 146mm. |

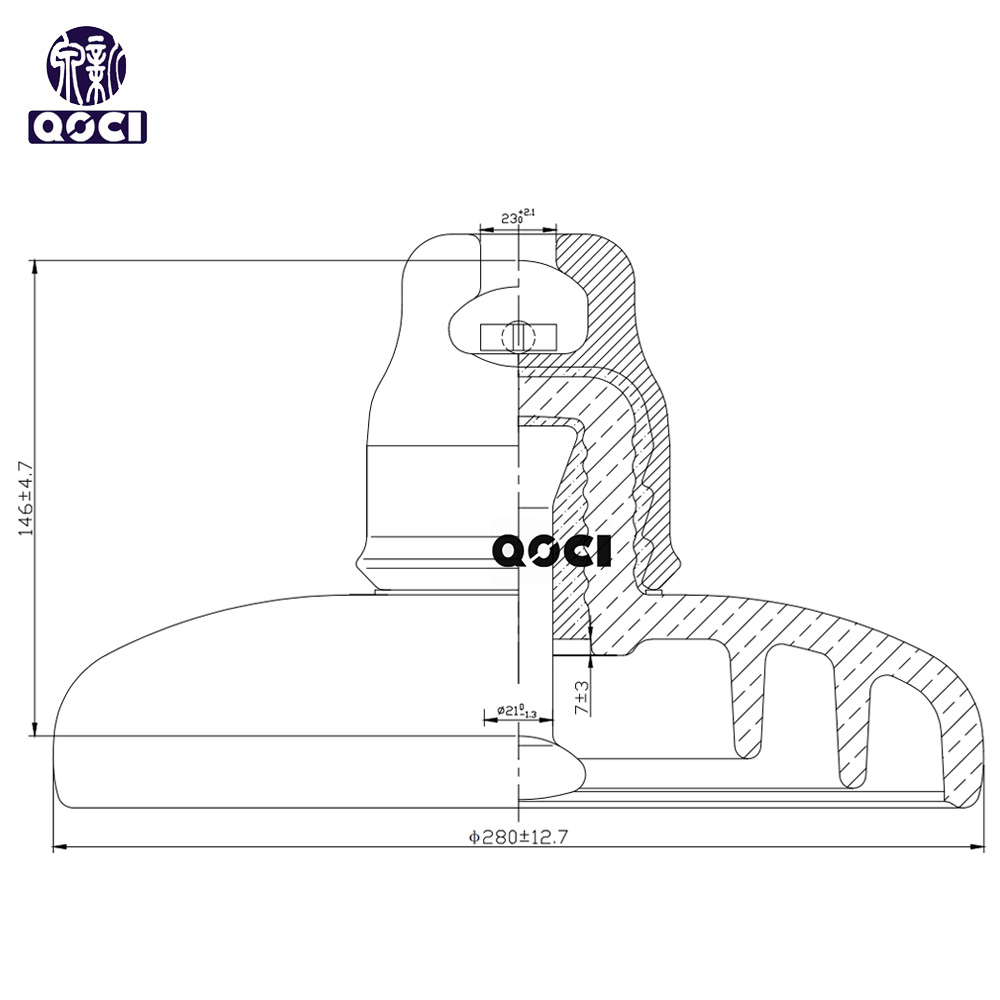

Dimensional data
|
Spacing(S) |
146mm |
|
Diameter(D) |
280mm |
|
Creepage distance (L) |
400mm |
|
Socket coupling |
20mm |
Mechanical values
|
Mechanical failing load |
160kN |
|
Mechanical residual strength |
128kN |
Electrical Values
|
Dry power frequency withstand voltage |
75kV |
|
Wet power frequency withstand voltage |
45kV |
|
Dry lightning impulse withstand voltage |
110kV |
|
Power frequency puncture voltage |
130kV |
Radio-influence Voltage
|
RIV test voltage rms to ground Maximum RIV at 1000 kHz: |
10 kV 50 μV |
|
Corona visual lest P/C |
18/22 KV |
|
Power frequency electric arc voltage |
0.12s/20kA |
Packing information
|
Net weight |
6.5kg |
|

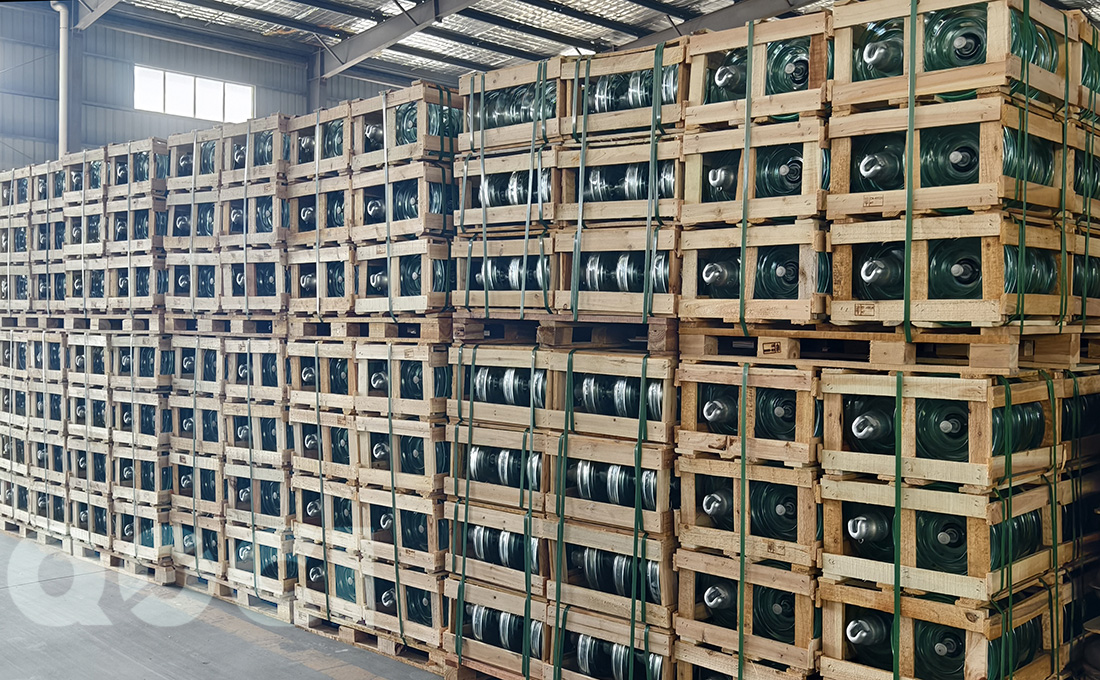

Carton Quantity: |
3/6pcs |
Industry Standard(s)
Manufactured accordance with IEC60383-1:2023，MOD / GB/T1001.1
